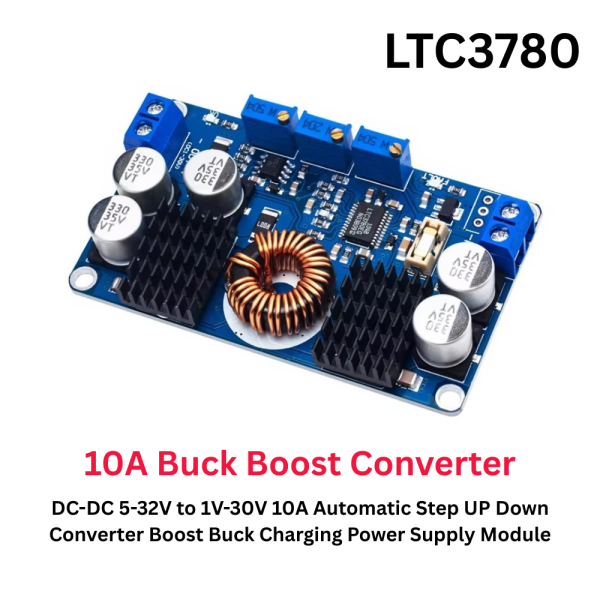

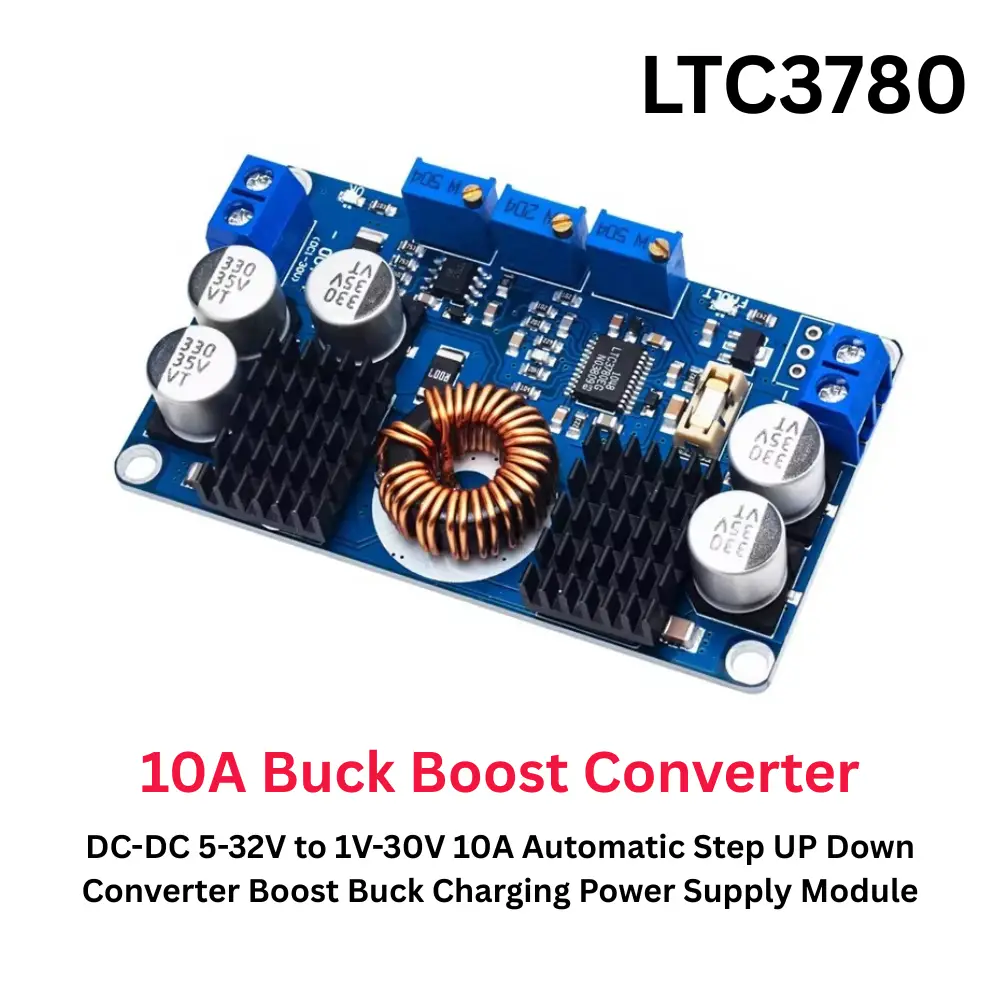

LTC3780 DC-DC 5-32V to 1V-30V 10A Automatic Step UP Down Converter Boost Buck Charging Power Supply Module

This power supply is a high-efficiency regulated power supply module. When the input voltage is lower than, higher than, or equal to the output voltage, the output voltage can remain stable. For example, if the output is set to 12V, when the input voltage changes between 5-32V, the output voltage will remain unchanged at 12V. This module has perfect protection function and can be applied to solar charging.

1. Input voltage: DC 5V-32V, the recommended voltage is above 10V

2. Output voltage: DC1V-30V continuously adjustable;

4. Output power: long-term 80W, peak 130W, please strengthen heat dissipation if it exceeds 80W;

5. Output ripple: 50mV (12V to 12V, measured at 5A);

6. Input reverse connection protection: None, if necessary, please connect a Schottky diode in series with the input terminal;

7. Output backflow prevention: None, if it is used for battery charging or the load is an inductive load with its own, please connect a Schottky diode in series with the output;

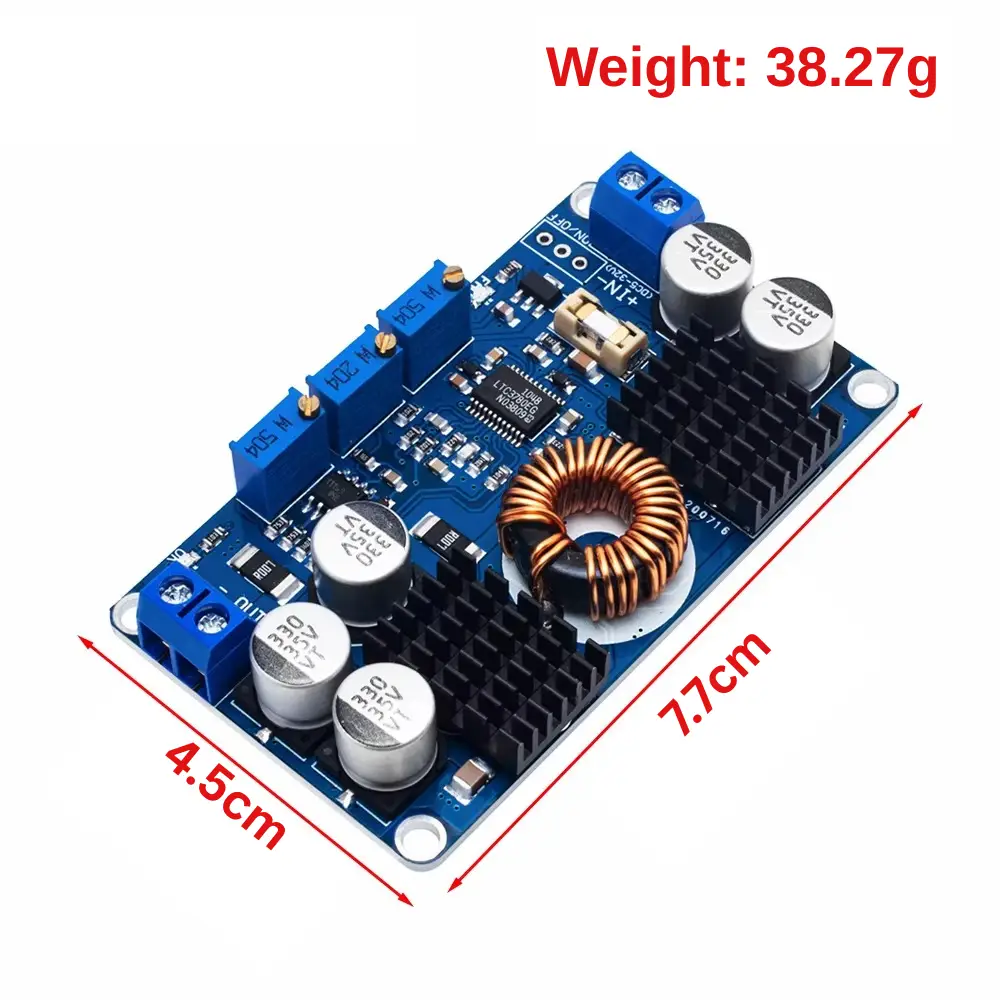

8. Size: 77.6*46.5*15mm

9. Short circuit protection: Yes

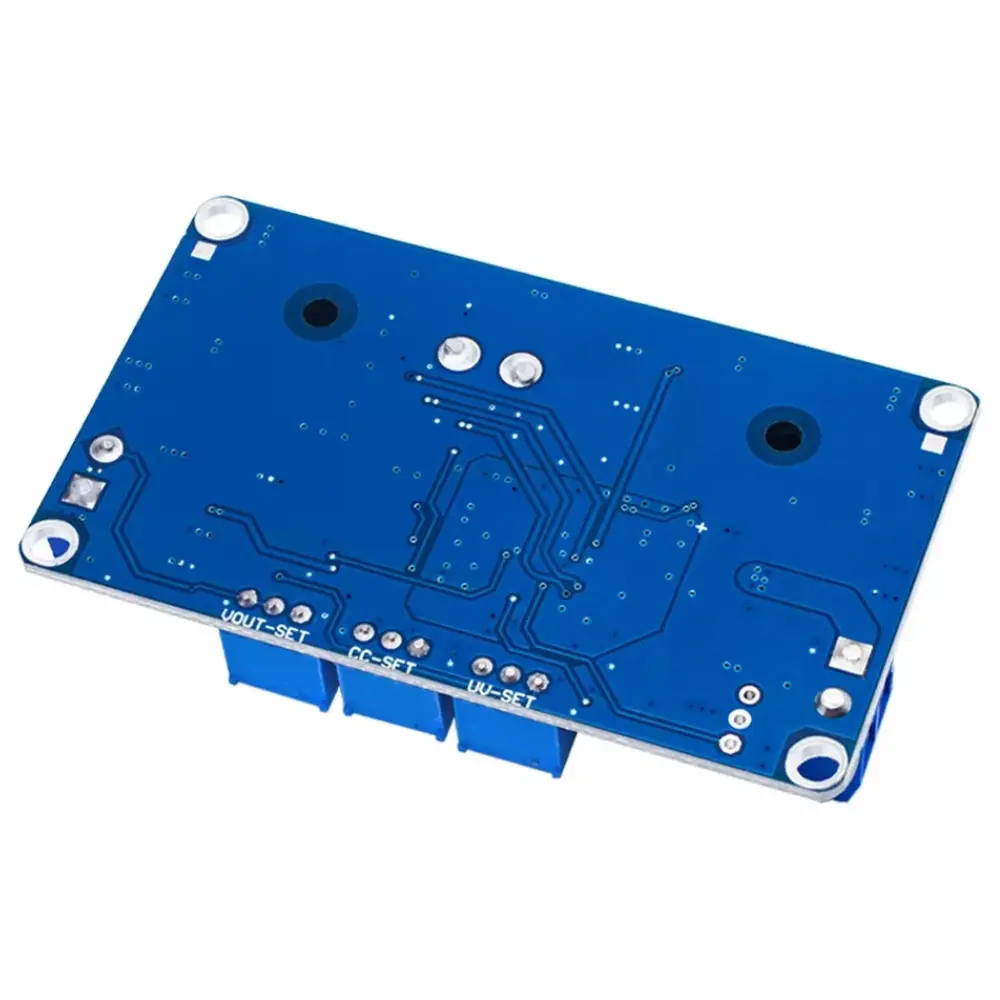

1. Battery undervoltage protection adjustment method: (Take 12V lead-acid battery to set 10V undervoltage protection and turn off the output as an example) The input is connected to the regulated power supply and adjust to 10V, and adjust the undervoltage protection potentiometer (clockwise increase, counterclockwise decrease) ) Until the fault indicator (red light) just lights up, the setting is successful; in this way, when the battery is discharged to 10V, the power supply will be automatically cut off to protect the battery from damage.

Note: If it is not battery powered, you can skip the setting;

2. The output voltage adjustment method: the input is connected to the power supply (the voltage is higher than the undervoltage protection value), the red light is off, the blue light is on, the output is connected to a multimeter, and the output voltage potentiometer is adjusted (clockwise to increase, counterclockwise to decrease), Until the required voltage;

Note: Normally, the red light is off and the blue light is on. Otherwise, it is faulty. Input under-voltage protection, output over-current protection, and output short-circuit protection. Please troubleshoot and re-power on.

3. Output current adjustment method: (take 12V input to charge 12V lead-acid battery, charging current 5A as an example). Connect the input to 12V power supply, set the current to the multimeter, output and connect to the multimeter (the red test lead is connected to the output positive, the black test lead is connected to the negative, Short-circuit the output directly. It is recommended to use a current gear above 15A to prevent burning of insurance), adjust the constant current potentiometer (clockwise increase, counterclockwise decrease) until the current shows the required value of 5A, remove the multimeter, and connect it The battery can be charged normally. If using an ammeter to adjust the output current, refer to the corresponding wiring of the ammeter for correct wiring and debugging.
